ST_MakePolygon

Signatures

POLYGON ST_MakePolygon(GEOMETRY shell);
POLYGON ST_MakePolygon(GEOMETRY shell, GEOMETRY... holes)

Description

Creates a POLYGON with the given shell and holes, which are required to be closed LINESTRINGs.

Examples

SELECT ST_MakePolygon(
        'LINESTRING(100 250, 100 350, 200 350, 200 250, 100 250)');
-- Answer: POLYGON((100 250, 100 350, 200 350, 200 250, 100 250))

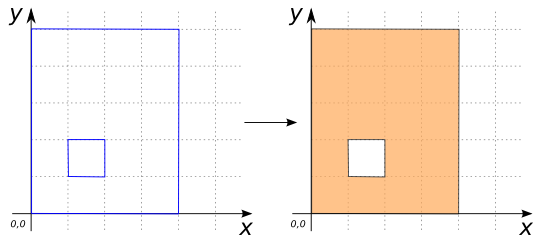

SELECT ST_MakePolygon(
            'LINESTRING(0 5, 4 5, 4 0, 0 0, 0 5)',
            'LINESTRING(1 1, 1 2, 2 2, 2 1, 1 1)');
-- Answer:     POLYGON((0 5, 4 5, 4 0, 0 0, 0 5),
--                     (1 1, 1 2, 2 2, 2 1, 1 1))

Non-examples
SELECT ST_MakePolygon('POINT(100 250)');
-- ERROR: Only supports LINESTRINGs.

SELECT ST_MakePolygon(
            'LINESTRING(100 250, 100 350, 200 350, 200 250)');
-- ERROR: The LINESTRING must be closed.
