ST_LineIntersector

Signatures

GEOMETRY ST_LineIntersector(GEOMETRY geomA, GEOMETRY geomB);

Description

LineIntersector is used to split an input geometry (LINESTRING or MULTILINESTRING) (geomA) with a set of geometries (geomB).

As a result, a collection of LINESTRING is returned.

Examples

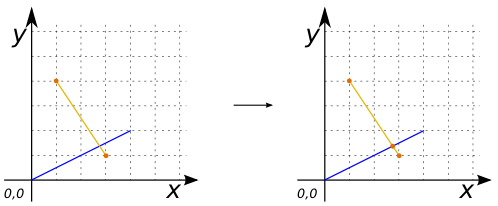

SELECT ST_LineIntersector('LINESTRING(1 3, 3 1)',
                          'LINESTRING(0 0, 4 2)') as THE_GEOM;
-- Answer: MULTILINESTRING ((1 3, 2.66 1.33), (2.66 1.33, 3 1))

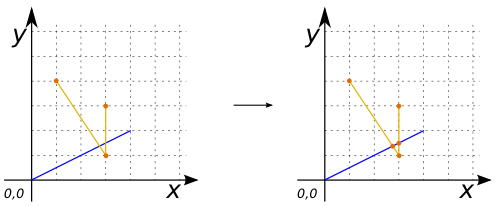

SELECT ST_LineIntersector('LINESTRING(1 3, 3 1, 3 3)',
                          'LINESTRING(0 0, 4 2)') as THE_GEOM;
-- Answer: MULTILINESTRING ((1 3, 2.66 1.33), (2.66 1.33, 3 1, 3 1.5), (3 1.5, 3 3))

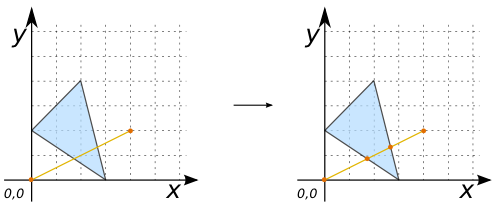

SELECT ST_LineIntersector('LINESTRING(0 0, 4 2)',
                          'POLYGON ((2 4, 0 2, 3 0, 2 4))') as THE_GEOM;
-- Answer: MULTILINESTRING ((0 0, 1.71 0.85), (1.71 0.85, 2.66 1.33), (2.66 1.33, 4 2))
