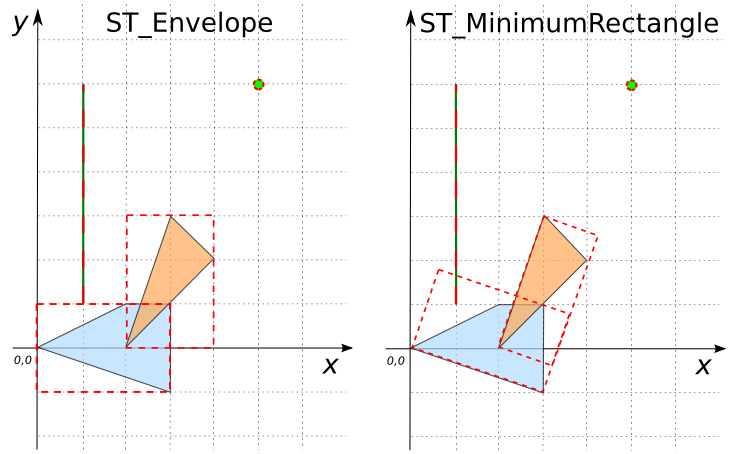

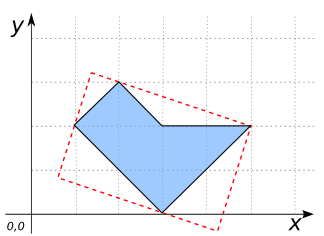

ST_MinimumRectangle Signature GEOMETRY ST_MinimumRectangle(GEOMETRY geom); Description Returns the minimum rectangle enclosing geom. Examples SELECT ST_MinimumRectangle('MULTIPOINT((8 3), (4 6))'); -- Answer: LINESTRING(8 3, 4 6) SELECT ST_MinimumRectangle('POLYGON((1 2, 3 0, 5 2, 3 2, 2 3, 1 2))'); -- Answer: POLYGON((1.3999999999999997 3.1999999999999997, -- 0.6 0.8, -- 4.2 -0.3999999999999996, -- 4.999999999999998 1.9999999999999991, -- 1.3999999999999997 3.1999999999999997)) SELECT ST_MinimumRectangle('LINESTRING(1 2, 2 4, 5 5, 2 1, 6 1)'); -- Answer: POLYGON((6 1, 6 5, 1 5, 1 1, 6 1)) SELECT ST_MinimumRectangle('GEOMETRYCOLLECTION( POLYGON((0 0, 3 -1, 1.5 2, 0 0)), POLYGON((2 0, 3 3, 4 2, 2 0)), POINT(5 6), LINESTRING(1 1, 1 6))'); -- Answer: POLYGON((5 6, -- 1.2352941176470589 6.9411764705882355, -- -0.5294117647058824 -0.1176470588235294, -- 3.235294117647059 -1.0588235294117647, -- 5 6)) Comparison with ST_Envelope CREATE TABLE input_table(geom GEOMETRY); INSERT INTO input_table VALUES ('POLYGON((0 0, 3 -1, 3 1, 2 1, 0 0))'), ('POLYGON((2 0, 3 3, 4 2, 2 0))'), ('POINT(5 6)'), ('LINESTRING(1 1, 1 6)'); SELECT ST_Envelope(geom) ENV, ST_MinimumRectangle(geom) MinRect FROM input_table; -- Answer: -- | ENV | MinRect | -- |--------------------------|-----------------------------| -- | POLYGON((0 -1, 0 1, 3 1, | POLYGON((3 -1, 3.59 0.80, | -- | 3 -1, 0 -1)) | 0.6 1.79, 0 -0, 3 -1)) | -- | POLYGON((2 0, 2 3, 4 3, | POLYGON((2 -0, 3.2 -0.40, | -- | 4 0, 2 0)) | 4.20 2.59, 3 2.99, 2 0)) | -- | POINT(5 6) | POINT(5 6) | -- | LINESTRING(1 1, 1 6) | LINESTRING(1 1, 1 6) | See also ST_Envelope, ST_Extent, ST_OctogonalEnvelope, ST_MinimumDiameter Source code JTS MinimumDiameter#getMinimumRectangle Back Next
