ST_EnvelopesIntersect
Signatures
BOOLEAN ST_EnvelopesIntersect(GEOMETRY geomA, GEOMETRY geomB);Description
Returns true if the envelope of geomA intersects the envelope of geomA.
As a consequence, if ST_Intersects(geomA, geomB) is true, then
ST_EnvelopesIntersect(geomA, geomB) is true.
Examples
Cases where ST_EnvelopesIntersect is true
SELECT ST_EnvelopesIntersect(geomA, geomB) FROM input_table;

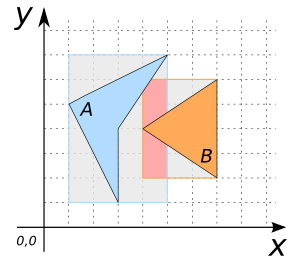

-- Answer: TRUE| geomA POLYGON | geomB POLYGON |
|---|---|
| POLYGON((3 1, 3 4, 5 7, 1 5, 3 1)) | POLYGON((7 2, 7 6, 4 4, 7 2)) |
| geomA LINESTRING | geomB LINESTRING |
|---|---|
| LINESTRING(2 2, 6 3, 3 6) | LINESTRING(1 4, 2 5, 4 3) |
| geomA MULTIPOINT | geomB MULTIPOINT |
|---|---|
| MULTIPOINT((1 4), (3 5), (5 2)) | MULTIPOINT((3 3), (4 4), (6 6)) |

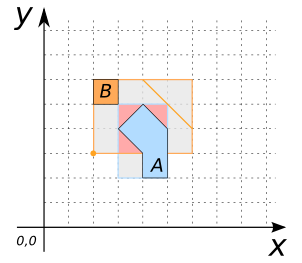

| geomA POLYGON | geomB GEOMETRYCOLLECTION |
|---|---|
| POLYGON((4 2, 5 2, 5 4, 4 5, 3 4, 4 3, 4 2)) | GEOMETRYCOLLECTION(POINT(2 3), LINESTRING(6 4, 4 6), POLYGON((2 5, 3 5, 3 6, 2 6, 2 5))) |
Cases where ST_EnvelopesIntersect is false
SELECT ST_EnvelopesIntersect(geomA, geomB) FROM input_table;

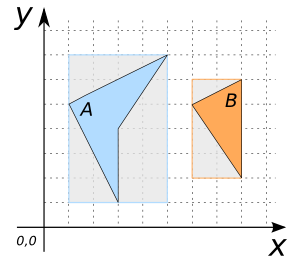

-- Answer: FALSE| geomA POLYGON | geomB POLYGON |
|---|---|
| POLYGON((3 1, 3 4, 5 7, 1 5, 3 1)) | POLYGON((8 2, 8 6, 6 5, 8 2)) |
