ST_Split

Signatures

GEOMETRY ST_Split(GEOMETRY geomA, GEOMETRY geomB);
GEOMETRY ST_Split(GEOMETRY geomA, GEOMETRY geomB,
                  DOUBLE snapTolerance);

Description

Splits geomA by geomB, returning NULL if geomB does not split geomA. Currently supported:

geomA geomB
LINESTRING POINT
LINESTRING LINESTRING
MULTILINESTRING POINT
MULTILINESTRING LINESTRING
POLYGON LINESTRING

When splitting a LINESTRING by a POINT, use a snapTolerance to determine where the point splits the line. If no snapTolerance is defined, a default tolerance of 10E-6 is assumed.

Examples

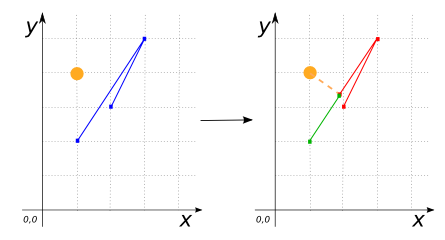

LINESTRING by a POINT
-- The point (3 4) lines on the line, so it is split at exactly this
-- point.
SELECT ST_Split('LINESTRING(4 3, 4 5, 2 3)',
                'POINT(3 4)');
-- Answer: MULTILINESTRING((4 3, 4 5, 3 4), (3 4, 2 3))

-- Here the default tolerance of 10E-6 is too small to split the
-- line.
SELECT ST_Split('LINESTRING(1 2, 3 5, 2 3)',
                'POINT(1 4)');
-- Answer: MULTILINESTRING EMPTY

-- But with a larger tolerance it is split as expected.
SELECT ST_Split('LINESTRING(1 2, 3 5, 2 3)',
                'POINT(1 4)',
                2);
-- Answer: MULTILINESTRING((1 2,
--                           1.9230769230769231 3.3846153846153846),
--                          (1.9230769230769231 3.3846153846153846,
--                           3 5, 2 3))

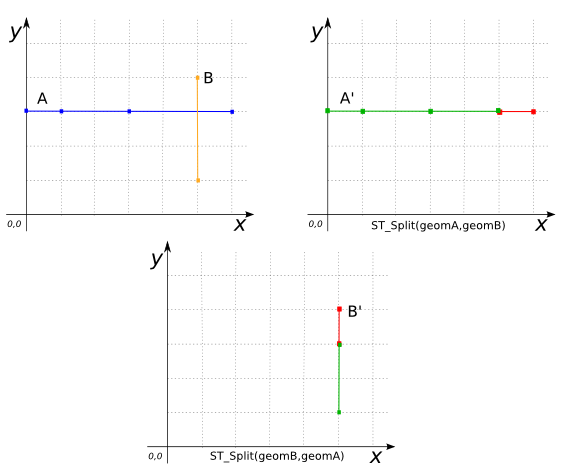

LINESTRING by a LINESTRING
-- The following two examples use the same input Geometries in
-- reverse order:
SELECT ST_Split('LINESTRING(0 3, 1 3, 3 3, 6 3)',
                'LINESTRING(5 1, 5 4)');
-- Answer: MULTILINESTRING((0 3, 1 3, 3 3, 5 3),
--                         (5 3, 6 3))

SELECT ST_Split('LINESTRING(5 1, 5 4)',
                'LINESTRING(0 3, 1 3, 3 3, 6 3)');
-- Answer: MULTILINESTRING((5 1, 5 3), (5 3, 5 4))

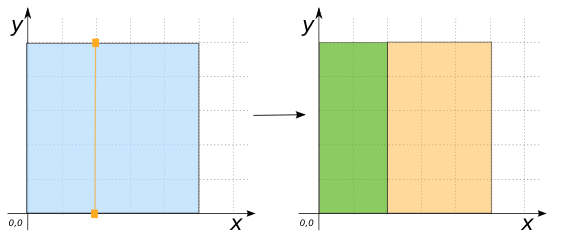

POLYGON by a LINESTRING
SELECT ST_Split('POLYGON((0 0, 5 0, 5 5, 0 5, 0 0))',
                'LINESTRING(2 0, 2 5)');
-- Answer: MULTIPOLYGON(((2 0, 0 0, 0 5, 2 5, 2 0)),
--                      ((5 5, 5 0, 2 0, 2 5, 5 5)))

-- If we split the same POLYGON with a hole, we get the expected
-- result:
SELECT ST_Split('POLYGON((0 0, 10 0, 10 10, 0 10, 0 0),
                         (2 2, 7 2, 7 7, 2 7, 2 2))',
                'LINESTRING(5 0, 5 10)');
-- Answer: MULTIPOLYGON(((5 0, 0 0, 0 10, 5 10, 5 7,
--                        2 7, 2 2, 5 2, 5 0)),
--                      ((5 10, 10 10, 10 0, 5 0, 5 2,
--                        7 2, 7 7, 5 7, 5 10)))

-- The LINESTRING does not split the POLYGON, so the answer is NULL
SELECT ST_Split('POLYGON((0 0, 10 0, 10 10, 0 10, 0 0))',
                'LINESTRING(5 1, 5 12)');
-- Answer: NULL
