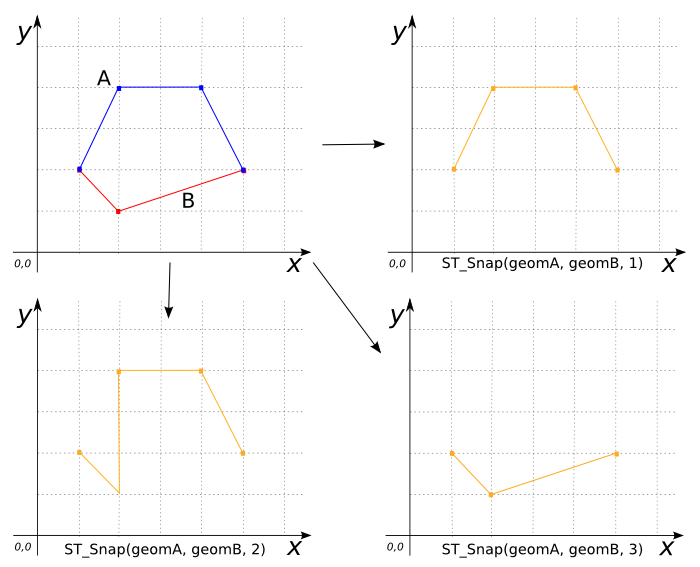

ST_Snap Signature GEOMETRY ST_Snap(GEOMETRY geomA, GEOMETRY geomB, DOUBLE snapTolerance); Description Snaps geomA and geomB together with the given snapTolerance. Examples -- The following three examples use the same input Geometries: SELECT ST_Snap('LINESTRING(1 2, 2 4, 4 4, 5 2)', 'LINESTRING(5 2, 2 1, 1 2)', 1); -- Answer: LINESTRING(1 2, 2 4, 4 4, 5 2) SELECT ST_Snap('LINESTRING(1 2, 2 4, 4 4, 5 2)', 'LINESTRING(5 2, 2 1, 1 2)', 2); -- Answer: LINESTRING(1 2, 2 1, 2 4, 4 4, 5 2) SELECT ST_Snap('LINESTRING(1 2, 2 4, 4 4, 5 2)', 'LINESTRING(5 2, 2 1, 1 2)', 3); -- Answer: LINESTRING(1 2, 1 2, 2 1, 5 2, 5 2) -- The following two examples use the same input Geometries in -- reverse order: SELECT ST_Snap('POLYGON((1 1, 1 7, 7 7, 7 1, 1 1))', 'POLYGON((3 3, 1 2, 0 2, 0 1, -2 1, -1 7, 3 6, 4 8, 7 8, 6 6, 9 6, 8 1, 8 1, 3 3))', 2); -- Answer: POLYGON((0 1, 1 2, 0 2, -1 7, 1 7, 3 6, 6 6, 8 1, 0 1)) SELECT ST_Snap('POLYGON((3 3, 1 2, 0 2, 0 1, -2 1, -1 7, 3 6, 4 8, 7 8, 6 6, 9 6, 8 1, 8 1, 3 3))', 'POLYGON((1 1, 1 7, 7 7, 7 1, 1 1))', 2); SELECT ST_Snap(geomB, geomA, 2) FROM input_table; -- Answer: POLYGON((3 3, 1 1, 1 1, 1 1, -2 1, -1 7, 1 7, 3 6, -- 4 8, 7 7, 7 7, 9 6, 7 1, 7 1, 3 3)) See also Source code Back Next
