ST_Intersection
Signatures
GEOMETRY ST_Intersection(GEOMETRY geomA, GEOMETRY geomB)Description
Computes the intersection between geomA and geomB.
geomA and geomB can be POINTs, LINESTRINGs, POLYGONs or GEOMETRYCOLLECTIONs
Implements the OpenGIS Simple Features Implementation Specification for SQL version 1.2.1.
Examples

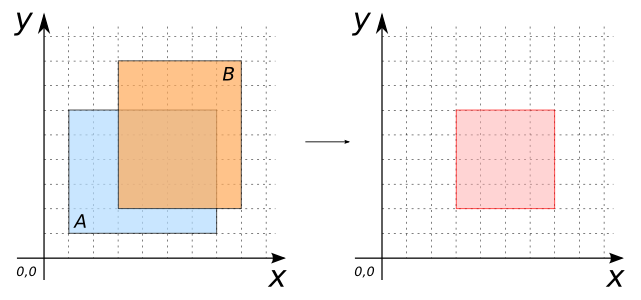

| geomA POLYGON | geomB POLYGON |
|---|---|
| POLYGON((1 1, 7 1, 7 6, 1 6, 1 1)) | POLYGON((3 2, 8 2, 8 8, 3 8, 3 2)) |
SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer: POLYGON((3 6, 7 6, 7 2, 3 2, 3 6))

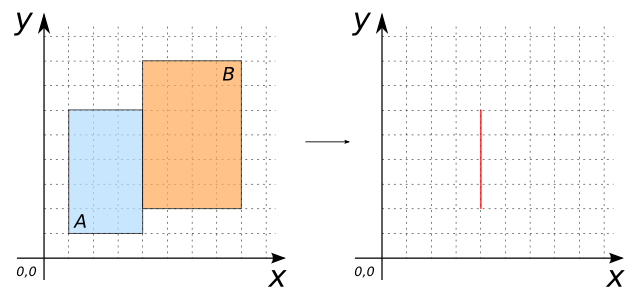

| geomA POLYGON | geomB POLYGON |
|---|---|
| POLYGON((1 1, 4 1, 4 6, 1 6, 1 1)) | POLYGON((4 2, 8 2, 8 8, 4 8, 4 2)) |
SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer: LINESTRING(4 2, 4 6)

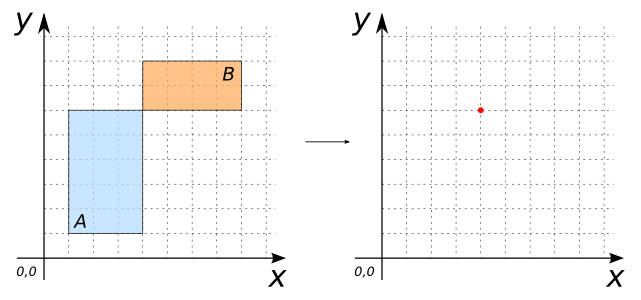

| geomA POLYGON | geomB POLYGON |
|---|---|
| POLYGON((1 1, 4 1, 4 6, 1 6, 1 1)) | POLYGON((4 6, 8 6, 8 8, 4 8, 4 6)) |
SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer: POINT(4 6)

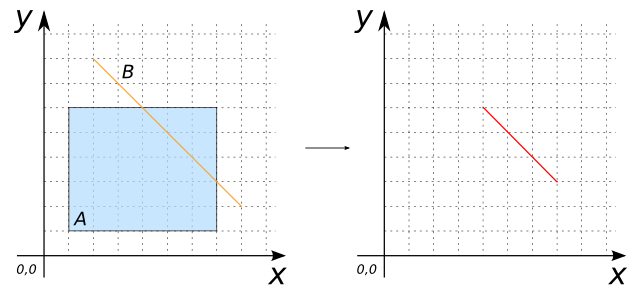

| geomA POLYGON | geomB LINESTRING |
|---|---|
| POLYGON((1 1, 7 1, 7 6, 1 6, 1 1)) | LINESTRING(2 8, 8 2) |
SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer: LINESTRING(4 6, 7 3)

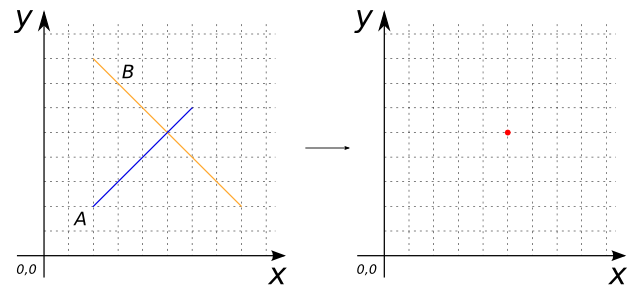

| geomA LINESTRING | geomB LINESTRING |
|---|---|
| LINESTRING(2 2, 6 6) | LINESTRING(2 8, 8 2) |
SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer: POINT(5 5)
| geomA POLYGON | geomB POINT |
|---|---|
| POLYGON((1 1, 7 1, 7 6, 1 6, 1 1)) | POINT(3 5) |
SELECT ST_Intersection(geomA, geomB) FROM input_table;
-- Answer: POINT(3 5)
