ST_Rotate

Signatures

GEOMETRY ST_Rotate(GEOMETRY geom, DOUBLE angle);
GEOMETRY ST_Rotate(GEOMETRY geom, DOUBLE angle, POINT origin);
GEOMETRY ST_Rotate(GEOMETRY geom, DOUBLE angle, DOUBLE x, DOUBLE y);

Description

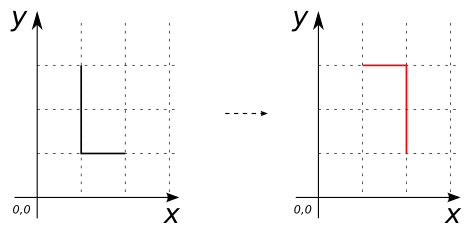

Rotates geom counter-clockwise by angle (in radians) about the point origin (or about the point specified by coordinates x and y). If no point is specified, geom is rotated about its center (the center of its internal envelope).

Examples

SELECT ST_Rotate('LINESTRING(1 3, 1 1, 2 1)', pi());
-- Answer:    LINESTRING(2 1, 2 3, 1 3)

SELECT ST_Rotate('LINESTRING(1 3, 1 1, 2 1)', pi() / 3);
-- Answer: LINESTRING(0.3839745962155607 2.0669872981077813,
--                    2.1160254037844384 1.0669872981077806,
--                    2.6160254037844384 1.933012701892219)

SELECT ST_Rotate('LINESTRING(1 3, 1 1, 2 1)', -pi()/2, ST_GeomFromText('POINT(2 1)'));
-- Answer:    LINESTRING(4 1, 2 2, 2 1)

SELECT ST_Rotate('LINESTRING(1 3, 1 1, 2 1)', pi()/2, 1.0, 1.0);
-- Answer:    LINESTRING(-1 1, 1 1, 1 2)
